Iron Oxide Pigment
Home > Products > Color Pavement Material > Iron Oxide Pigment
  • Iron Oxide Pigment

  • Iron Oxide Pigment

  • Iron Oxide Pigment

  • Iron Oxide Pigment

  • Iron Oxide Pigment

Iron Oxide Pigment

Item Code: GCP-OP-01

  • Feature
  • Technical Data
  • Application
  • Package

Go Green Color Asphalt  Pigment is a unique Color Pigment system that has been specifically developed for the Color Asphalt market  It is one kind of environmental protection pigments and is internationally recognized as non-toxic pigments. It is easy to disperse, high temperature resistance, high tinting power, good adherence, excellent light fastness, weather resistance and chemical resistance.
The product incorporates the premium quality Inorganic Pigments within a unique carrier system. This offers high quality consistent Coloration of the Asphalt as well as a diverse range of benefits to the Asphalt during production, laying and service.


Advantages


Technical Data Sheet



ItemIron Oxide RedHeat Stable YellowCompound Ferric GreenCompound Ferric Blue
Type1301UPT155605103
Fe2O3 Content (%)≥92≥82

Oil Absorption

(g/100g)

15~2525~3525~3525~35

Res. on 325 Mesh

(%)

≤0.5≤0.3≤0.5≤0.5

Water Sol. Salts

(%)

≤0.5≤0.5≤2.5≤2.5
Moisture

(%)

≤1.0≤1.5≤1.0≤1.0
PH Value5~75~7≥6.0≥6.0

Tamped Apparent

Density g/cm3

1.1
0.5
0.8
0.4~0.8
Particle ShapeIrregularAcicularIrregularIrregular

Compared with std.

≤1.0≤1.2≤1.0≤1.0

Tingting Strength

(%)

97~10395~10597~10397~103


Different colors are available:

Color Asphalt Pigment

Improved Color Consistency
Go Green Color Asphalt  Pigment is manufactured from the successful range of Go Green Industrial (shanghai) co.ltd and uses a high shear dispersion process which results in high levels of color strength and color consistency.


Package

25kg kraft bag, 25kg melting PE bag, 1 ton bag



This is the technical data of iron oxide red


ProductTypePurity (%)Moisture at 105℃ (%)Water soluble   salts (%)Sieve residue on 325 mesh (%)PH valueOil absorption (g/100g)Color differenceTinting strength (%)

Iron Oxide Red
110≥96≤1.0≤0.3≤0.33.0-7.015-25≤1.095-105
120≥96≤1.0≤0.3≤0.33.0-7.015-25≤1.095-105
130≥96≤1.0≤0.3≤0.33.0-7.015-25≤1.095-105
190≥96≤1.0≤0.3≤0.33.0-7.015-25≤1.095-105



1. Color Asphalt (mainly use)

2. Paint & Coating

3. Paper

4. Construction

5. Cosmetics

6. Plastic

7. Rubber

8. Leather

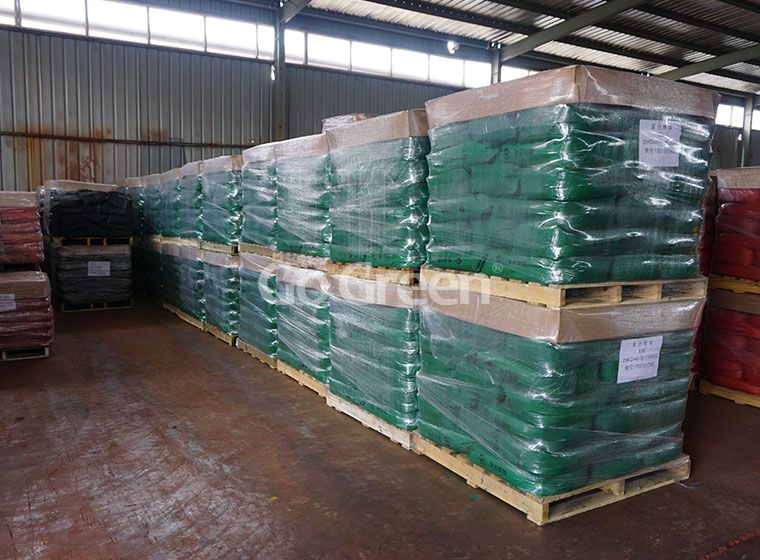

Package comes in 25kg bags.


Product NamePhotoDescriptionContainer Loading
Color Asphalt PigmentColor Asphalt Pigment

Go Green Color Asphalt  Pigment is a unique Color Pigment system that has been specifically developed for the Color Asphalt market  It is one kind of environmental protection pigments. A wide range of colors including Blue, Green, Red, Yellow and different colors are available.

25kg/bag


40 Bags/ Pallet


20 Pallets/ 20'FCL
